MNIST Anomaly Detection

Baseline from: https://arxiv.org/pdf/2006.02516.pdf

• 14x14, [\(0-1\)] range, pixels flattened (dont exploit inherent locality)

• Embedding: TrigonometricEmbedding (p=2)

• Combined loss: \(\mathcal{L} = \frac{1}{N}\sum_{i=1}^{N} \left( \log \left\| P \Phi({X_i}) \right\|_2^2 - 1 \right)^2 + \alpha \cdot \mathrm{ReLU}\left(\log(\|P\|_F^2)\right)\)

Imports

import os
os.environ["KMP_WARNINGS"] = "0"
import jax
import jax.numpy as jnp
import numpy as np
import optax
from sklearn.metrics import auc
import tensorflow as tf
from tensorflow.keras.datasets import mnist
from jax.nn.initializers import *
import matplotlib.pyplot as plt

from tn4ml.initializers import *
from tn4ml.models.smpo import *
from tn4ml.models.model import *
from tn4ml.embeddings import *
from tn4ml.metrics import *
from tn4ml.util import *
from tn4ml.eval import *

jax.config.update("jax_enable_x64", True)

Load dataset

train, test = mnist.load_data()
data = {"X": dict(train=train[0], test=test[0]), "y": dict(train=train[1], test=test[1])}

normal_class = 0

X = {
"normal": data["X"]["train"][data["y"]["train"] == normal_class]/255.0,
"anomaly": data["X"]["train"][data["y"]["train"] != normal_class]/255.0,
}

X_test = {
"normal": data["X"]["test"][data["y"]["test"] == normal_class]/255.0,
"anomaly": data["X"]["test"][data["y"]["test"] != normal_class]/255.0,
}

# Function to resize images to 14x14
def resize_images(images):
    resized_images = tf.image.resize(images, [14, 14], method=tf.image.ResizeMethod.AREA)
    return resized_images.numpy()

X_resized = {
    "normal": resize_images(np.expand_dims(X["normal"], axis=-1)),
    "anomaly": resize_images(np.expand_dims(X["anomaly"], axis=-1)),
}

X_test_resized = {
    "normal": resize_images(np.expand_dims(X_test["normal"], axis=-1)),
    "anomaly": resize_images(np.expand_dims(X_test["anomaly"], axis=-1)),
}

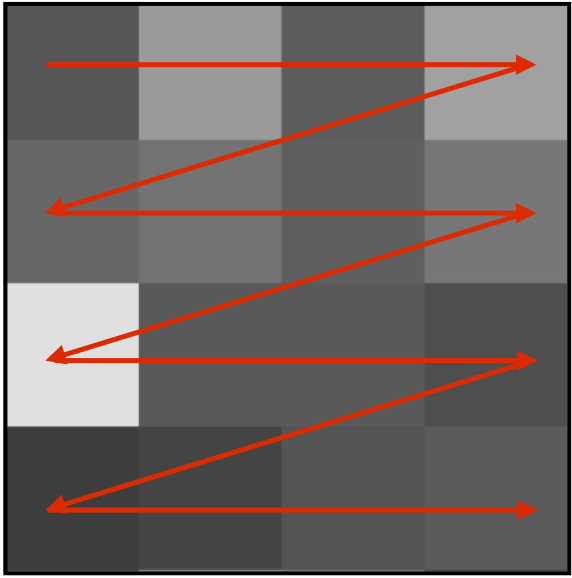

Rearrange pixels in zig-zag order

• (from https://arxiv.org/pdf/1605.05775.pdf)

def zigzag_order(data):
    data = np.squeeze(data)
    data_zigzag = []
    for x in data:
        image = []
        for i in x:
            image.extend(i)
        data_zigzag.append(image)
    return np.asarray(data_zigzag)

zigzag = True

if zigzag:
    train_normal = zigzag_order(X_resized["normal"])
    test_normal = zigzag_order(X_test_resized["normal"])

    train_anomaly = zigzag_order(X_resized["anomaly"])
    test_anomaly = zigzag_order(X_test_resized["anomaly"])
else:
    train_normal = X_resized['normal'].reshape(-1, X_resized['normal'].shape[1]*X_resized['normal'].shape[2])
    test_normal = X_test_resized['normal'].reshape(-1, X_test_resized['normal'].shape[1]*X_test_resized['normal'].shape[2])

    train_anomaly = X_resized['anomaly'].reshape(-1, X_resized['anomaly'].shape[1]*X_resized['anomaly'].shape[2])
    test_anomaly = X_test_resized['anomaly'].reshape(-1, X_test_resized['anomaly'].shape[1]*X_test_resized['anomaly'].shape[2])

Training setup

• Stochastic Gradient Descent

# define model parameters
L = 196
initializer = gramschmidt('normal', 1e-1)
key = jax.random.key(42)
shape_method = 'noteven'
bond_dim = 10
phys_dim = (2,2)
spacing = 8
add_identity = True
boundary='obc'

model = SMPO_initialize(L=L,
                        initializer=initializer,
                        key=key,
                        shape_method=shape_method,
                        spacing=spacing,
                        bond_dim=bond_dim,
                        phys_dim=phys_dim,
                        cyclic=False,
                        compress=True,
                        add_identity=add_identity,
                        boundary=boundary)

alpha = 0.4
def loss_combined(*args, **kwargs):
    error = LogQuadNorm
    reg = LogReLUFrobNorm
    return CombinedLoss(*args, **kwargs, error=error, reg=lambda P: alpha*reg(P))

# define training parameters
epochs = 100
batch_size = 512
optimizer = optax.adam
strategy = 'global'
loss = loss_combined
train_type = TrainingType.UNSUPERVISED
embedding = TrigonometricEmbedding()
learning_rate = 1e-3
earlystop = EarlyStopping(min_delta=0, patience=5, monitor='loss', mode='min')

model.configure(optimizer=optimizer, strategy=strategy, loss=loss, train_type=train_type, learning_rate=learning_rate)

history = model.train(train_normal,
            epochs=epochs,
            batch_size=batch_size,
            embedding = embedding,
            normalize=True,
            earlystop=earlystop,
            dtype=jnp.float64)

epoch:   8%|▊          8/100 , loss=7031.4258

Waiting for 1 epochs.

epoch:   9%|▉          9/100 , loss=7078.5192

Waiting for 2 epochs.

epoch:  10%|█          10/100 , loss=7210.6993

Waiting for 3 epochs.

epoch:  11%|█          11/100 , loss=7421.0710

Waiting for 4 epochs.

epoch:  12%|█▏         12/100 , loss=7653.6296

Training stopped by EarlyStopping on epoch: 7

epoch:  13%|█▎         13/100 , loss=7932.4797

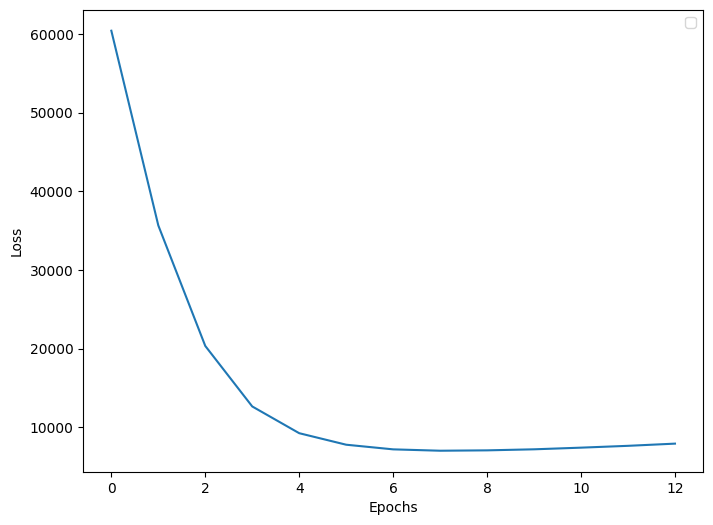

plot_loss(history, validation=False, figsize=(8, 6))

Evaluate

indices = list(range(len(test_anomaly)))
np.random.shuffle(indices)

indices = indices[:len(test_normal)]
test_anomaly = np.take(test_anomaly, indices, axis=0)

loss = LogQuadNorm

anomaly_score = model.evaluate(test_anomaly, evaluate_type=train_type, return_list=True, dtype=jnp.float64, batch_size=128, embedding=embedding, metric = loss)
normal_score = model.evaluate(test_normal, evaluate_type=train_type, return_list=True, dtype=jnp.float64, batch_size=128, embedding=embedding, metric = loss)

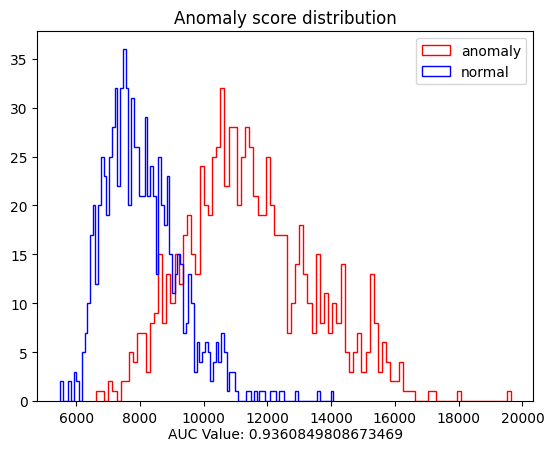

Plot anomaly scores and ROC curve

fpr, tpr = get_roc_curve_data(normal_score, anomaly_score, anomaly_det=True)
auc_value = auc(fpr, tpr)

plt.figure()
plt.hist(anomaly_score, bins=100, histtype='step', label='anomaly', color='red')
plt.hist(normal_score, bins=100, histtype='step', label='normal', color='blue')
plt.title('Anomaly score distribution')
plt.legend()
plt.text(0.5, -0.1, f'AUC Value: {auc_value}', ha='center', transform=plt.gca().transAxes)
plt.legend()
plt.show()

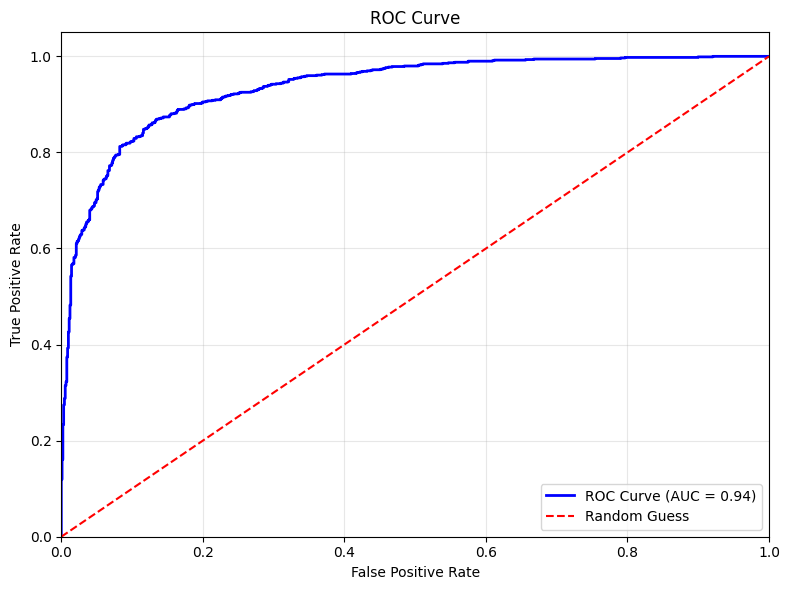

# Plot ROC curve
plot_ROC_curve_from_data(fpr, tpr)
